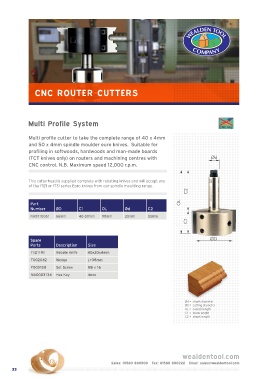

Page 36 - CNC catalogue 2021

CNC ROUTER CUTTERS

Multi Profile System

Multi profile cutter to take the complete range of 40 x 4mm
and 50 x 4mm spindle moulder euro knives. Suitable for
profiling in softwoods, hardwoods and man-made boards
(TCT knives only) on routers and machining centres with Ød
CNC control. N.B. Maximum speed 12,000 r.p.m.

This cutterhead is supplied complete with rebating knives and will accept any
of the F121 or F131 series Euro knives from our spindle moulding range.
C2

Part OL
Number ØD C1 OL Ød C2
NA8710061 66mm 40-50mm 98mm 20mm 55mm
C1

Spare ØD
Parts Description Size
F121191 Rebate Knife 40x20x4mm
F002042 Wedge L=38mm

F003128 Set Screw M8 x 16
NA0003134 Hex Key 4mm

Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
C2 = shank length
