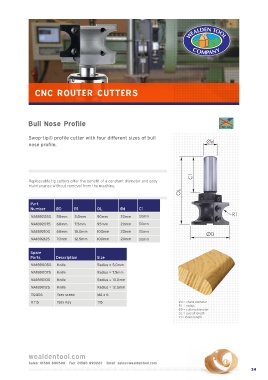

Page 37 - CNC catalogue 2021

CNC ROUTER CUTTERS

Bull Nose Profile

Swop-tip© profile cutter with four different sizes of bull
nose profile. Ød

C1
Replaceable tip cutters offer the benefit of a constant diameter and easy
maintenance without removal from the machine.
OL

Part
Number ØD R1 OL Ød C1
NA1892050 50mm 5.0mm 90mm 20mm 50mm R1

NA1892075 60mm 7.5mm 95mm 20mm 50mm
NA1892100 60mm 10.0mm 100mm 20mm 50mm
ØD
NA1892125 70mm 12.5mm 100mm 20mm 50mm

Spare
Parts Description Size
NA1890050 Knife Radius = 5.0mm
NA1890075 Knife Radius = 7.5mm
NA1890100 Knife Radius = 10.0mm
NA1890125 Knife Radius = 12.5mm
TQ406 Torx screw M4 x 6
KT15 Torx Key T15 Ød = shank diameter
R1 = radius
ØD = cutting diameter
OL = overall length
C1 = shank length
