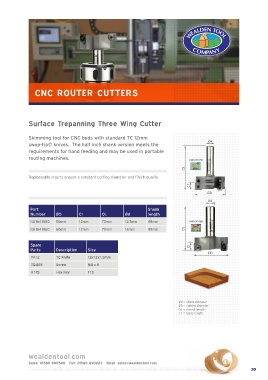

Page 33 - CNC catalogue 2021
P. 33
CNC ROUTER CUTTERS
Surface Trepanning Three Wing Cutter
Skimming tool for CNC beds with standard TC 12mm
Ød
swop-tip© knives. The half inch shank version meets the
requirements for hand feeding and may be used in portable
routing machines. NA1641050
OL MAN
Replaceable inserts ensure a constant cutting diameter and finish quality.
C1
ØD
Ød
Part Shank
Number ØD C1 OL Ød length
NA1641050 50mm 12mm 70mm 12.7mm 49mm NA1641060
NA1641060 60mm 12mm 70mm 16mm 49mm OL CNC only
Spare C1
Parts Description Size
ØD
TK12 TC Knife 12x12x1.5mm
TQ405 Screw M4 x 5
KT15 Hex Key T15
Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
