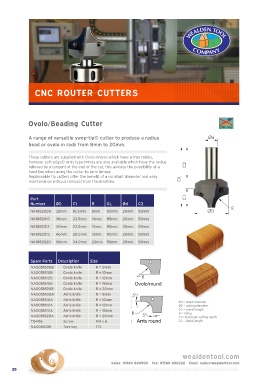

Page 38 - CNC catalogue 2021

CNC ROUTER CUTTERS

Ovolo/Beading Cutter

A range of versatile swop-tip© cutter to produce a radius Ød
bead or ovolo in radii from 8mm to 20mm.

These cutters are supplied with Ovolo knives which have a true radius,
however soft-edge© arris type knives are also available which have the radius
relieved by a tangent at the end of the cut, this avoides the possibility of a C2
hard line when using the cutter to arris timber.
Replaceable tip cutters offer the benefit of a constant diameter and easy
maintenance without removal from the machine. OL

Part C1
Number ØD C1 R OL Ød C2
R
NA1882008 32mm 18.5mm 8mm 80mm 20mm 50mm ØD
NA1882010 36mm 23.5mm 10mm 85mm 20mm 50mm
NA1882012 40mm 23.5mm 12mm 85mm 20mm 50mm
NA1882015 46mm 28.5mm 15mm 90mm 20mm 50mm
NA1882020 56mm 34.0mm 20mm 95mm 20mm 50mm

Spare Parts Description Size
NA0051808B Ovolo knife R = 8mm
NA0051810B Ovolo knife R = 10mm
NA0051812B Ovolo knife R = 12mm
NA0051815B Ovolo knife R = 15mm
NA0051820B Ovolo knife R = 20mm
NA0051808A Arris knife R = 8mm
NA0051810A Arris knife R = 10mm Ød = shank diameter
NA0051812A Arris knife R = 12mm ØD = cutting diameter
NA0051815A Arris knife R = 15mm OL = overall length
R = radius
NA0051820A Arris knife R = 20mm C1 = maximum cutting depth
TQ406 Screw M4 x 6 C2 = shank length
NA0050015 Torx key T15
