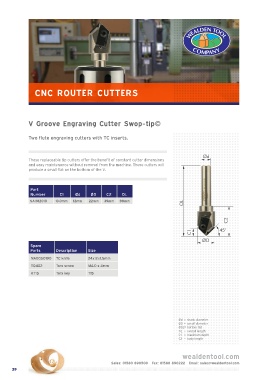

Page 42 - CNC catalogue 2021
P. 42
CNC ROUTER CUTTERS
V Groove Engraving Cutter Swop-tip©
Two flute engraving cutters with TC inserts.
These replaceable tip cutters offer the benefit of constant cutter dimensions
and easy maintenance without removal from the machine. These cutters will
produce a small flat on the bottom of the V.
Part
Number C1 Ød ØD C2 OL
NA1912010 10.0mm 12mm 22mm 39mm 88mm
Spare
Parts Description Size
NA0050190 TC knife 24x12x1.5mm
TQ402 Torx screw M4.0 x 4mm
KT15 Torx key T15
Ød = shank diameter
ØD = oveall diameter
ØD2= bottom flat
OL = overall length
C1 = maximum depth
C2 = body length
