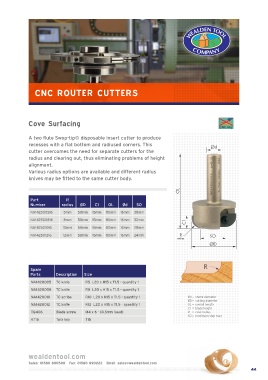

Page 47 - CNC catalogue 2021

CNC ROUTER CUTTERS

Cove Surfacing

A two flute Swop-tip© disposable insert cutter to produce
recesses with a flat bottom and radiused corners. This Ød
cutter overcomes the need for separate cutters for the
radius and clearing out, thus eliminating problems of height
alignment.
Various radius options are available and different radius
knives may be fitted to the same cutter body.

OL

Part R
Number radius ØD C1 OL Ød SO
NA142500516 5mm 50mm 15mm 80mm 16mm 38mm
NA142500816 8mm 50mm 15mm 80mm 16mm 32mm
C1
NA142501016 10mm 50mm 15mm 80mm 16mm 28mm

NA142501216 12mm 50mm 15mm 80mm 16mm 24mm R SO
radius
ØD

R
Spare
Parts Description Size

NA1420005 TC knife R5 L20 x H15 x T1.5 - quantity 1
NA1420008 TC knife R8 L20 x H15 x T1.5 - quantity 1
NA1420010 TC scribe R10 L20 x H15 x T1.5 - quantity 1 Ød = shank diameter
ØD = cutting diameter
NA1420012 TC knife R12 L20 x H15 x T1.5 - quantity 1 OL = overall length
C1 = blade height
TQ406 Blade screw M4 x 6 - (8.5mm head) R = cove radius
SO = maximum step over
KT15 Torx key T15
