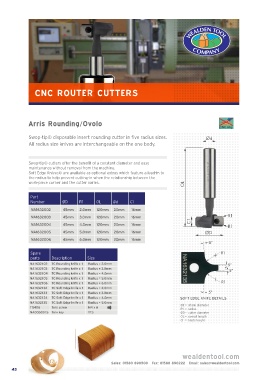

Page 46 - CNC catalogue 2021

CNC ROUTER CUTTERS

Arris Rounding/Ovolo

Swop-tip© disposable insert rounding cutter in five radius sizes. Ød
All radius size knives are interchangeable on the one body.

Swop-tip© cutters offer the benefit of a constant diameter and easy
maintenance without removal from the machine.
Soft Edge Knives© are available as optional extras which feature a lead-in to
the radius to help prevent cutting-in when the relationship between the
work-piece corner and the cutter varies. OL

Part
Number ØD R1 OL Ød C1

NA1632002 45mm 2.0mm 120mm 20mm 16mm
NA1632003 45mm 3.0mm 120mm 20mm 16mm R1
C1
NA1632004 45mm 4.0mm 120mm 20mm 16mm
R1
NA1632005 45mm 5.0mm 120mm 20mm 16mm ØD
NA1632006 45mm 6.0mm 120mm 20mm 16mm
5°

Spare R1
parts Description Size
NA1632102 TC Rounding knife x 1 Radius = 2.0mm 5°
NA1632103 TC Rounding knife x 1 Radius = 3.0mm 5°
NA1632104 TC Rounding knife x 1 Radius = 4.0mm
NA1632105 TC Rounding knife x 1 Radius = 5.0mm
NA1632106 TC Rounding knife x 1 Radius = 6.0mm R1
NA1632132 TC Soft Edge knife x 1 Radius = 2.0mm
NA1632133 TC Soft Edge knife x 1 Radius = 3.0mm 5°
NA1632134 TC Soft Edge knife x 1 Radius = 4.0mm SOFT EDGE KNIFE DETAILS
NA1632135 TC Soft Edge knife x 1 Radius = 5.0mm Ød = shank diameter
TQ406 Torx screw M4 x 6
R1 = radius
NA0050015 Torx key T15 ØD = cutter diameter
OL = overall length
C1 = blade height
