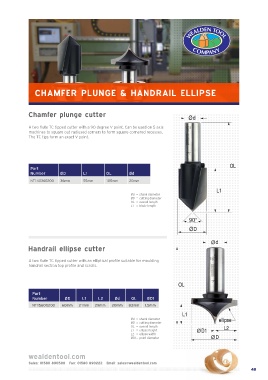

CHAMFER PLUNGE & HANDRAIL ELLIPSE

Chamfer plunge cutter

A two flute TC tipped cutter with a 90 degree V point. Can be used on 5 axis
machines to square out radiused corners to form square cornered recesses.
The TC tips form an exact V point.

Part
Number ØD L1 OL Ød

NT140360200 36mm 55mm 105mm 20mm

Ød = shank diameter
ØD = cutting diameter
OL = overall length
L1 = blade length

Handrail ellipse cutter

A two flute TC tipped cutter with an elliptical profile suitable for moulding
handrail section top profile and scrolls.

Part
Number ØD L1 L2 Ød OL ØD1
NT15600200 60mm 21mm 29mm 20mm 83mm 1.5mm

Ød = shank diameter
ØD = cutting diameter
OL = overall length
L1 = ellipse height
L2 = ellipse width
ØD1 = point diameter
