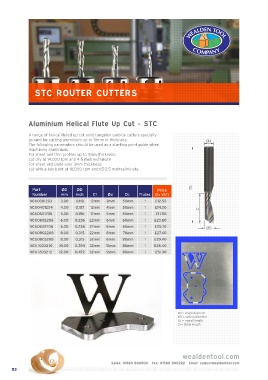

Page 56 - CNC catalogue 2021

STC ROUTER CUTTERS

Aluminium Helical Flute Up Cut - STC

A range of helical fluted up-cut solid tungsten carbide cutters specially
ground for cutting aluminium up to 10mm in thickness. Ød
The following paramaters should be used as a starting point guide when
machining aluminium.
For sheet and thin profiles up to 3mm thickness:
cut dry at 14,000 rpm and 4-5 metres/minute
For sheet and plate over 3mm thickness:
cut with a lubricant at 18,000 rpm and 1.5-2.5 metres/minute

Part ØD ØD Price OL
Number mm inch C1 Ød OL Flutes (Ex VAT)
NCU0301203 3.00 0.118 12mm 3mm 50mm 1 £12.55
NCU0401204 4.00 0.157 12mm 4mm 50mm 1 £14.00 C1
NCU0501705 5.00 0.196 17mm 5mm 50mm 1 £17.90
NCU0602206 6.00 0.236 22mm 6mm 60mm 1 £23.60
NCU0602706 6.00 0.236 27mm 6mm 60mm 1 £25.70 ØD
NCU0802208 8.00 0.315 22mm 8mm 70mm 1 £27.40
NCU0803208 8.00 0.315 32mm 8mm 80mm 1 £29.40
NCU1003210 10.00 0.394 32mm 10mm 80mm 1 £36.40
NCU1203212 12.00 0.472 32mm 12mm 80mm 1 £51.30

Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
