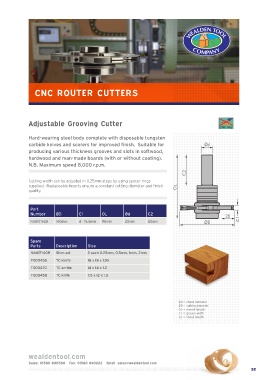

Page 55 - CNC catalogue 2021

CNC ROUTER CUTTERS

Adjustable Grooving Cutter

Hard-wearing steel body complete with disposable tungsten
carbide knives and scorers for improved finish. Suitable for Ød
producing various thickness grooves and slots in softwood,
hardwood and man-made boards (with or without coating).
N.B. Maximum speed 8,000 r.p.m.
C2

Cutting width can be adjusted in 0.25mm steps by using spacer rings
supplied. Replaceable inserts ensure a constant cutting diameter and finish OL
quality.

Part
Number ØD C1 OL Ød C2
28
NA6171420 140mm 4 - 15.5mm 95mm 20mm 50mm ØD C1

Spare
Parts Description Size
NA6171408 Shim set 2 each 0.25mm, 0.5mm, 1mm, 2mm
F000455 TC kinife 18 x 18 x 1.95
F000470 TC scribe 14 x 14 x 1.2
F000450 TC knife 7.5 x 12 x 1.5

Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = groove width
C2 = shank length
