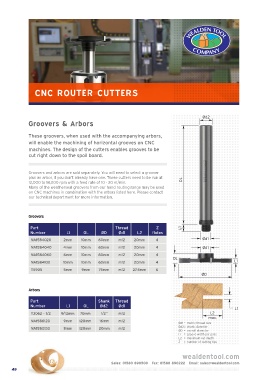

Page 52 - CNC catalogue 2021

CNC ROUTER CUTTERS

Groovers & Arbors

These groovers, when used with the accompanying arbors,
will enable the machining of horizontal grooves on CNC
machines. The design of the cutters enables grooves to be
cut right down to the spoil board.

Groovers and arbors are sold separately. You will need to select a groover
plus an arbor, if you don’t already have one. These cutters need to be run at
12,000 to 14,000 rpm with a feed rate of 10 - 20 m/min.
Many of the weatherseal groovers from our hand routing range may be used
on CNC machines in combination with the arbors listed here. Please contact
our technical department for more information.

Groovers

Part Thread Z
Number L1 OL ØD Ød1 L2 flutes
NA1584020 2mm 10mm 60mm m12 20mm 4
NA1584040 4mm 10mm 60mm m12 20mm 4
NA1584060 6mm 10mm 60mm m12 20mm 4
NA1584100 10mm 10mm 60mm m12 20mm 4
T5905 5mm 9mm 75mm m12 27.5mm 6

Arbors

Part Shank Thread
Number L1 OL Ød2 Ød1
T3062 – 1/2 9/12mm 70mm 1/2” m12
NA1586120 9mm 120mm 16mm m12
Ød1 = metric thread size
NA1580130 8mm 120mm 20mm m12 Ød2 = shank diameter
ØD = overall diameter
L1 = groove width per pass
L2 = maximum cut depth
Z = number of cutting tips
