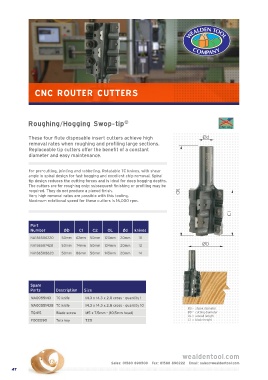

Page 50 - CNC catalogue 2021

CNC ROUTER CUTTERS

©
Roughing/Hogging Swop-tip

These four flute disposable insert cutters achieve high Ød
removal rates when roughing and profiling large sections.
Replaceable tip cutters offer the benefit of a constant
diameter and easy maintenance.

For pre-cutting, jointing and rabbeting. Rotatable TC knives, with shear
angle in spiral design for fast hogging and excellent chip removal. Spiral
tip design reduces the cutting forces and is ideal for deep hogging depths.
The cutters are for roughing only: subsequent finishing or profiling may be
required. They do not produce a planed finish. OL
Very high removal rates are possible with this tooling.
Maximum rotational speed for these cutters is 16,000 rpm.

C1

Part
Number ØD C1 C2 OL Ød knives
NA186506220 50mm 62mm 50mm 120mm 20mm 10
NA186507420 50mm 74mm 50mm 134mm 20mm 12 ØD

NA186508620 50mm 86mm 50mm 145mm 20mm 14

Spare
Parts Description Size
NA0055143 TC knife 14.3 x 14.3 x 2.8 cross - quantity 1
NA0055143B TC knife 14.3 x 14.3 x 2.8 cross - quantity 10
Ød = shank diameter
TQ415 Blade screw M5 x 7.5mm - (10.5mm head) ØD = cutting diameter
OL = overall length
F002090 Torx key T20 C1 = blade height
