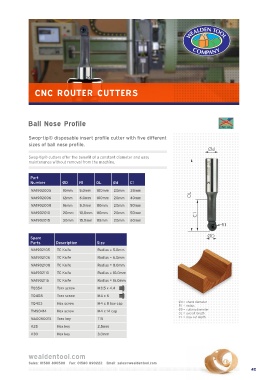

Page 45 - CNC catalogue 2021

CNC ROUTER CUTTERS

Ball Nose Profile

Swop-tip© disposable insert profile cutter with five different
sizes of ball nose profile.
Ød
Swop-tip© cutters offer the benefit of a constant diameter and easy
maintenance without removal from the machine.

Part
Number ØD R1 OL Ød C1
NA1902005 10mm 5.0mm 100mm 20mm 38mm
OL
NA1902006 12mm 6.0mm 100mm 20mm 40mm
NA1902008 16mm 8.0mm 110mm 20mm 50mm
NA1902010 20mm 10.0mm 110mm 20mm 50mm
C1
NA1902015 30mm 15.0mm 115mm 20mm 60mm
R1

Spare ØD
Parts Description Size
NA1902105 TC Knife Radius = 5.0mm
NA1902106 TC Knife Radius = 6.0mm
NA1902108 TC Knife Radius = 8.0mm
NA1902110 TC Knife Radius = 10.0mm
NA1902115 TC Knife Radius = 15.0mm
TQ354 Torx screw M3.5 x 4.4
TQ408 Torx screw M4 x 6

TQ403 Hex screw M4 x 8 low cap Ød = shank diameter
R1 = radius
TMS0414 Hex screw M4 x 14 cap ØD = cutting diameter
OL = overall length
C1 = max cut depth
NA0050015 Torx key T15
K25 Hex key 2.5mm
K30 Hex key 3.0mm
