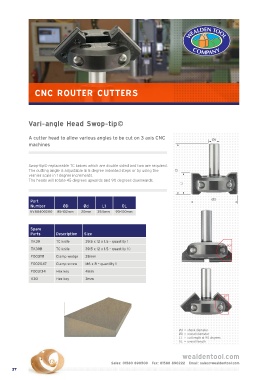

CNC ROUTER CUTTERS







              Vari-angle Head Swop-tip©


              A cutter head to allow various angles to be cut on 3 axis CNC
              machines




              Swop-tip© replaceable TC knives which are double sided and two are required.
              The cutting angle is adjustable in 5 degree indented steps or by using the
              vernier scale in 1 degree increments.
              The heads will rotate 45 degrees upwards and 90 degrees downwards.




               Part
               Number        ØD       Ød      L1       OL
              NV88400200  85-102mm   20mm   39.5mm  90-100mm



               Spare
               Parts      Description  Size
               TK39       TC knife     39.5 x 12 x 1.5 – quantity 1
               TK39B      TC knife     39.5 x 12 x 1.5 – quantity 10
               F003111    Clamp wedge   38mm
               F002047    Clamp screw   M6 x 8 – quantity 1

               F003134    Hex key      4mm
               K30        Hex key      3mm












                                                                                Ød  =  shank diameter
                                                                                ØD  =  overall diameter
                                                                                L1  =  cut length at 90 degrees
                                                                                OL  =  overall length
