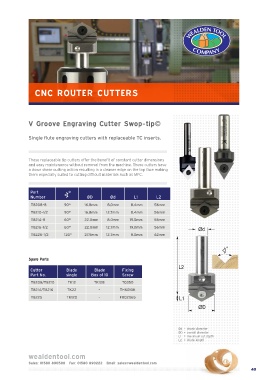

Page 43 - CNC catalogue 2021
P. 43
CNC ROUTER CUTTERS
V Groove Engraving Cutter Swop-tip©
Single flute engraving cutters with replaceable TC inserts.
These replaceable tip cutters offer the benefit of constant cutter dimensions
and easy maintenance without removal from the machine. These cutters have
a down shear cutting action resulting in a cleaner edge on the top face making
them especially suited to cutting difficult materials such as MFC.
Part
Number ØD Ød L1 L2
T8208–8 90° 16.8mm 8.0mm 8.4mm 56mm
T8210–1/2 90° 16.8mm 12.7mm 8.4mm 56mm
T8214–8 60° 22.0mm 8.0mm 19.0mm 56mm
T8216–1/2 60° 22.0mm 12.7mm 19.0mm 56mm
T8225–1/2 120° 27.5mm 12.7mm 8.0mm 62mm
Spare Parts
Cutter Blade Blade Fixing
Part No. single Box of 10 Screw
T8208/T8210 TK12 TK12B TQ350
T8214/T8216 TK22 – TH6010K
T8225 TK120 – F002065
Ød = shank diameter
ØD = overall diameter
L1 = maximum cut depth
L2 = shank length
