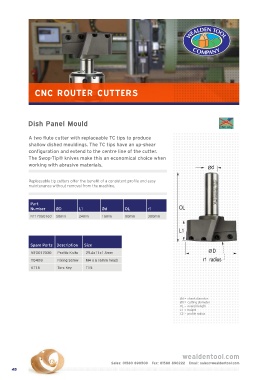

Page 48 - CNC catalogue 2021

CNC ROUTER CUTTERS

Dish Panel Mould

A two flute cutter with replaceable TC tips to produce
shallow dished mouldings. The TC tips have an up-shear
configuration and extend to the centre line of the cutter.
The Swop-Tip® knives make this an economical choice when
working with abrasive materials.

Replaceable tip cutters offer the benefit of a consistent profile and easy
maintenance without removal from the machine.

Part
Number ØD L1 Ød OL r1
NT17060160 58mm 24mm 16mm 80mm 300mm

Spare Parts Description Size
NT0017030 Profile Knife 29.4x11x1.5mm

TQ408 Fixing Screw M4 x 6 (6mm head)
KT15 Torx Key T15

Ød = shank diameter
ØD = cutting diameter
OL = overall length
L1 = height
C2 = profile radius
