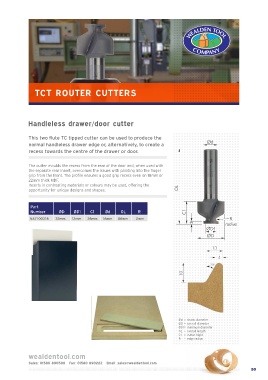

Page 53 - CNC catalogue 2021

TCT ROUTER CUTTERS

Handleless drawer/door cutter

This two flute TC tipped cutter can be used to produce the
normal handleless drawer edge or, alternatively, to create a Ød
recess towards the centre of the drawer or door.

The cutter moulds the recess from the rear of the door and, when used with
the separate rear insert, overcomes the issues with painting into the finger
grip from the front. The profile ensures a good grip recess even on 18mm or
22mm thick MDF.
Inserts in contrasting materials or colours may be used, offering the
opportunity for unique designs and shapes. OL

Part
Number ØD ØD1 C1 Ød OL R C1
NA7100316 32mm 12mm 26mm 16mm 86mm 2mm R
3 radius
ØD1
ØD

Ød = shank diameter
ØD = overall diameter
ØD1 = minimum diameter
OL = overall length
C1 = cutter hight
R = edge radius
