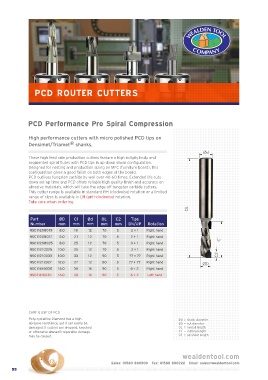

PCD ROUTER CUTTERS

PCD Performance Pro Spiral Compression

High performance cutters with micro polished PCD tips on
®
Densimet/Triamet shanks.
Ød
These high feed rate production cutters feature a high ridigity body and
segmented spiral flutes with PCD tips in up-down shear configuration.
Designed for nesting and production sizing on MFC (furniture board), this
configuration gives a good finish on both edges of the board.
PCD outlives tungsten carbide by well over 40-60 times. Extended life cuts
down set-up time and PCD offers reliable high quality finish and accuracy on
abrasive materials, which will take the edge off tungsten carbide cutters.
This cutter range is available in standard RH (clockwise) rotation or a limited
range of sizes is available in LH (anti-clockwise) rotation.
Take care when ordering.
OL

Part ØD C1 Ød OL C2 Tips
Number mm mm mm mm mm DN/UP Rotation
NSC11208019 8.0 18 12 70 5 2 + 1 Right hand
NSC11208021 8.0 21 12 70 5 2 + 1 Right hand
C1
NSC11208025 8.0 25 12 70 5 3 + 1 Right hand
NSC11210025 10.0 25 12 70 5 3 + 1 Right hand
NSC11210033 10.0 33 12 90 5 ?? + ?? Right hand C2
NSC11212027 12.0 27 12 80 5 ?? + ?? Right hand
ØD
NSC11616030 16.0 30 16 90 5 6 + 2 Right hand
NSC21616030 16.0 30 16 90 5 6 + 2 Left hand

CARE & USE OF PCD
Polycrystalline Diamond has a high Ød = shank diameter
abrasive resistance, yet it can easily be ØD = cut diameter
damaged. If cutters are dropped, knocked OL = overall length
or otherwise abused irreparable damage C1 = cutting length
may be caused. C2 = up-shear length
