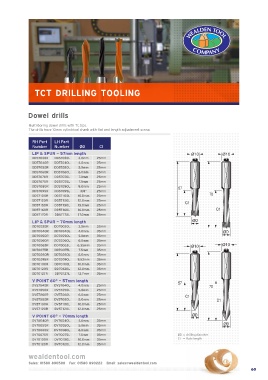

Page 63 - CNC catalogue 2021

TCT DRILLING TOOLING

Dowel drills

Multi-boring dowel drills with TC tips.
The drills have 10mm cylindrical shank with flat and length adjustment screw.

RH Part LH Part
Number Number ØD C1
LIP & SPUR — 57mm length Ø10 Ø10
DD57030R DD57030L 3.0mm 25mm
DD57040R DD57040L 4.0mm 25mm
DD57050R DD57050L 5.0mm 25mm
DD57060R DD57060L 6.0mm 25mm
DD57070R DD57070L 7.0mm 25mm
DD57075R DD57075L 7.5mm 25mm
DD57080R DD57080L 8.0mm 25mm 57
DD57095R DD57095L 3/8” 25mm
DD57100R DD57100L 10.0mm 25mm 70
DD57120R DD57120L 12.0mm 25mm C1
DD57150R DD57150L 15.0mm 25mm
DD57160R DD57160L 16.0mm 25mm C1
DD57170R DD57170L 17.0mm 25mm
LIP & SPUR — 70mm length ØD
DD70030R DD70030L 3.0mm 32mm
DD70040R DD70040L 4.0mm 35mm ØD
DD70050R DD70050L 5.0mm 35mm
DD70060R DD70060L 6.0mm 35mm
DD70063R DD70063L 6.35mm 35mm Ø10 Ø10
DD70075R DD70075L 7.5mm 35mm
DD70080R DD70080L 8.0mm 35mm
DD70095R DD70090L 9.53mm 35mm
DD70100R DD70100L 10.0mm 35mm
DD70120R DD70120L 12.0mm 35mm
DD70127R DD70127L 12.7mm 35mm
V POINT 60° — 57mm length
DV57040R DV57040L 4.0mm 25mm 57
70
DV57050R DV57050L 5.0mm 25mm
DV57060R DV57060L 6.0mm 25mm C1
DV57080R DV57080L 8.0mm 25mm C1
DV57100R DV57100L 10.0mm 25mm
DV57120R DV57120L 12.0mm 25mm
V POINT 60° — 70mm length ØD
DV70040R DV70040L 4.0mm 35mm
DV70050R DV70050L 5.0mm 35mm ØD
DV70060R DV70060L 6.0mm 35mm
DV70075R DV70075L 7.5mm 35mm ØD = drilling diameter
DV70100R DV70100L 10.0mm 35mm C1 = flute length
DV70120R DV70120L 12.0mm 35mm
