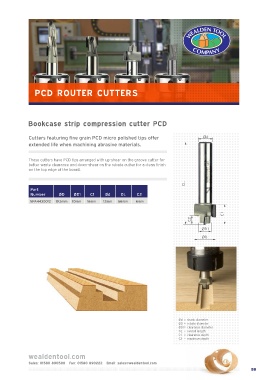

Page 61 - CNC catalogue 2021
P. 61
PCD ROUTER CUTTERS
Bookcase strip compression cutter PCD
Cutters featuring fine grain PCD micro polished tips offer Ød
extended life when machining abrasive materials.
These cutters have PCD tips arranged with up-shear on the groove cutter for
better waste clearance and down-shear on the rebate cutter for a clean finish
on the top edge of the board.
OL
Part
Number ØD ØD1 C1 Ød OL C2
NPA4430012 19.5mm 10mm 16mm 12mm 66mm 6mm
C1
C2
ØD1
ØD
Ød = shank diameter
ØD = rebate diameter
ØD1 = clearance diameter
OL = overall length
C1 = clearance depth
C2 = maximum depth
