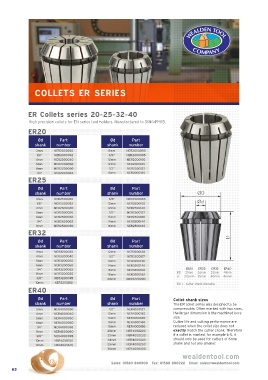

Page 66 - CNC catalogue 2021

COLLETS ER SERIES

ER Collets series 20-25-32-40

High precision collets for EN series tool holders. Manufactured to DIN6499/B.
ER20

Ød Part Ød Part
shank number shank number
3mm NER2000030 8mm NER2000080
1/8” NER2000032 3/8” NER2000095
4mm NER2000040 10mm NER2000100
5mm NER2000050 12mm NER2000120
6mm NER2000060 1/2” NER2000127
1/4” NER2000063 13mm NER2000130
ER25

Ød Part Ød Part
shank number shank number ØD
3mm NER2500030 3/8” NER2500095
1/8” NER2500032 10mm NER2500100 Ød
4mm NER2500040 12mm NER2500120
5mm NER2500050 1/2” NER2500127
6mm NER2500060 13mm NER2500130
1/4” NER2500063 14mm NER2500140
8mm NER2500080 16mm NER2500160
ER32
L1
Ød Part Ød Part
shank number shank number
3mm NER3200030 12mm NER3200120
4mm NER3200040 1/2” NER3200127
5mm NER3200050 13mm NER3200130
6mm NER3200060 14mm NER3200140
1/4” NER3200063 16mm NER3200160 ER20 ER25 ER32 ER40
8mm NER3200080 18mm NER3200180 ØD 21mm 26mm 33mm 41mm
3/8” NER3200095 20mm NER3200200 L1 31.5mm 35mm 40mm 46mm
10mm NER3200100 Ød = cutter shank diameter
ER40

Ød Part Ød Part Collet shank sizes
shank number shank number The ER collet series was designed to be
3mm NER4000030 1/2” NER4000127 compressible. Often marked with two sizes,
4mm NER4000040 13mm NER4000130 the larger dimension is the machined bore
5mm NER4000050 14mm NER4000140 size.
6mm NER4000060 16mm NER4000160 Cutter life and cutting performance are
1/4” NER4000063 18mm NER4000180 reduced when the collet size does not
8mm NER4000080 20mm NER4000200 exactly match the cutter shank. Therefore
3/8” NER4000095 22mm NER4000220 if a collet is marked, for example 6-5, it
10mm NER4000100 24mm NER4000240 should only be used for cutters of 6mm
12mm NER4000120 25mm NER4000250 shank and not any smaller.
30mm NER4000300
