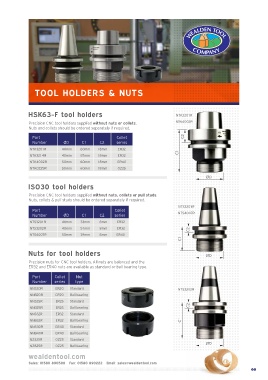

TOOL HOLDERS & NUTS

HSK63-F tool holders NTK3201R

Precision CNC tool holders supplied without nuts or collets. NTK4002R
Nuts and collets should be ordered separately if required.

Part Collet C2
Number ØD C1 C2 series
NTK3201R 40mm 60mm 18mm ER32
C1
NTK3214R 40mm 87mm 18mm ER32
NTK4002R 50mm 60mm 18mm ER40
NTKOZ25R 50mm 60mm 18mm OZ25

ØD
ISO30 tool holders

Precision CNC tool holders supplied without nuts, collets or pull studs.
Nuts, collets & pull studs should be ordered separately if required.
NTS3201R
Part Collet
Number ØD C1 C2 series NTS4007R
NTS3201R 40mm 33mm 8mm ER32
NTS3202R 40mm 51mm 8mm ER32
C2
NTS4007R 50mm 39mm 8mm ER40
C1

Nuts for tool holders ØD

Precision nuts for CNC tool holders. All nuts are balanced and the
ER32 and ER40 nuts are available as standard or ball bearing type.

Part Collet Nut
Number series type
NNS20R ER20 Standard NTS3202R
NNB20R ER20 Ball bearing
NNS25R ER25 Standard
C2
NNB25R ER25 Ball bearing
NNS32R ER32 Standard
NNB32R ER32 Ball bearing C1
NNS40R ER40 Standard
NNB40R ER40 Ball bearing
NZS25R OZ25 Standard
ØD
NZB25R OZ25 Ball bearing
