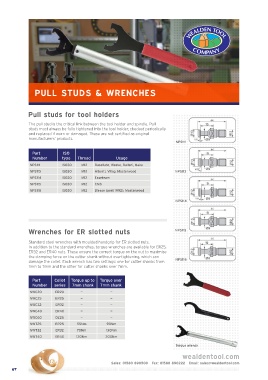

Page 70 - CNC catalogue 2021

PULL STUDS & WRENCHES

Pull studs for tool holders

The pull stud is the critical link between the tool holder and spindle. Pull
studs must always be fully tightened into the tool holder, checked periodically
and replaced if worn or damaged. These are not certified as original
manufacturers’ products.
NPS111

Part ISO
Number type Thread Usage
NPS111 ISO30 M12 Busellato, Weeke, Bulleri, Maka
NPS113 ISO30 M12 Alberti, Vitap, Masterwood NPS113
NPS114 ISO30 M12 Esseteam
NPS115 ISO30 M12 CMS
NPS118 ISO30 M12 Biesse (post 1992), Masterwood

NPS114

Wrenches for ER slotted nuts NPS115

Standard steel wrenches with moulded handgrip for ER slotted nuts.
In addition to the standard wrenches, torque wrenches are available for ER25,
ER32 and ER40 nuts. These ensure the correct torque on the nut to maximise
the clamping force on the cutter shank without overtightening, which can
damage the collet. Each wrench has two settings: one for cutter shanks from NPS118
1mm to 7mm and the other for cutter shanks over 7mm.

Part Collet Torque up to Torque over
Number series 7mm shank 7mm shank
NWC20 ER20 — —
NWC25 ER25 — —
NWC32 ER32 — —
NWC40 ER40 — —
NWC60 OZ25 — —
NWT25 ER25 55Nm 90Nm
NWT32 ER32 70Nm 130Nm
NWT40 ER40 120Nm 200Nm
Torque wrench
