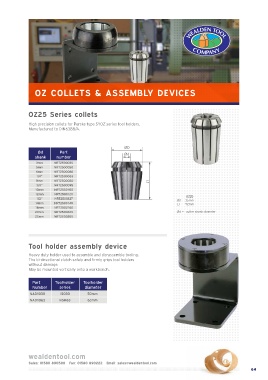

Page 67 - CNC catalogue 2021

OZ COLLETS & ASSEMBLY DEVICES

OZ25 Series collets

High precision collets for Perske type SYOZ series tool holders.
Manufactured to DIN6388/A.

ØD
Ød Part Ød
shank number
3mm NRT2500030
5mm NRT2500050
6mm NRT2500060
1/4” NRT2500063
8mm NRT2500080 L1
3/8” NRT2500095
10mm NRT2500100
12mm NRT2500120
OZ25
1/2” NRT2500127 ØD 35mm
14mm NRT2500140 L1 52mm
16mm NRT2500160
20mm NRT2500200 Ød = cutter shank diameter
25mm NRT2500250

Tool holder assembly device

Heavy duty holder used to assemble and dis-assemble tooling.
The bi-directional clutch safely and firmly grips tool holders
without damage.
May be mounted vertically onto a workbench.

Part Toolholder Toolholder
Number series diameter
NAD1030 ISO30 50mm
NAD1063 HSK63 63mm
