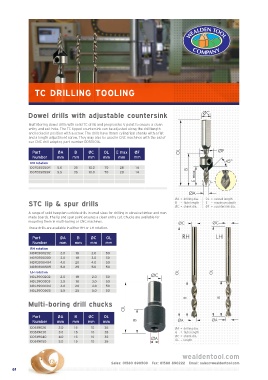

Page 64 - CNC catalogue 2021

TC DRILLING TOOLING

Dowel drills with adjustable countersink

Multi-boring dowel drills with solid TC drills and progressive V point to ensure a clean
entry and exit hole. The TC tipped countersink can be adjusted along the drill length
and locked in position with a screw. The drills have 10mm cylindrical shanks with a flat
and a length adjustment screw. They may also be used in CNC machines with the aid of
our CNC drill adaptor, part number DD510016.

Part ØA B ØC OL E max ØF
Number mm mm mm mm mm mm
RH rotation
DG7035050R 5.0 35 10.0 70 28 14
DG7035055R 5.5 35 10.0 70 28 14

ØA = drilling dia. OL = overall length
STC lip & spur drills B = flute length E = maximum depth
ØF = countersink dia.
ØC = shank dia.
A range of solid tungsten carbide drills in small sizes for drilling in abrasive timber and man
made boards. The lip and spur point ensures a clean entry cut. Chucks are available for
mounting them in multi-boring or CNC machines.
These drills are available in either RH or LH rotation.

Part ØA B ØC OL
Number mm mm mm mm
RH rotation
NDR3900202 2.0 18 2.0 50
NDR3900303 3.0 18 3.0 50
NDR3900404 4.0 20 4.0 50
NDR3900505 5.0 25 5.0 50
LH rotation
NDL3900202 2.0 18 2.0 50
NDL3900303 3.0 18 3.0 50
NDL3900404 4.0 20 4.0 50
NDL3900505 5.0 25 5.0 50

Multi-boring drill chucks

Part ØA B ØC OL
Number mm mm mm mm
DD519020 2.0 15 10 35 ØA = drilling dia.
DD519030 3.0 15 10 35 B = flute length
DD519040 4.0 15 10 35 ØC = shank dia.
DD519050 5.0 15 10 35 OL = length
