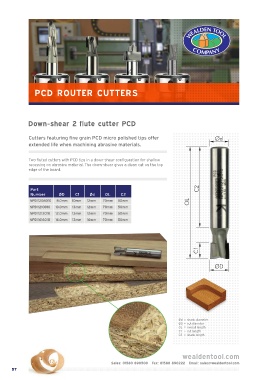

PCD ROUTER CUTTERS
Down-shear 2 flute cutter PCD
Cutters featuring fine grain PCD micro polished tips offer Ød
extended life when machining abrasive materials.
Two fluted cutters with PCD tips in a down-shear configuration for shallow
recessing on abrasive material. The down-shear gives a clean cut on the top
edge of the board.
Part C2
Number ØD C1 Ød OL C2
NPD11208010 8.0mm 10mm 12mm 70mm 50mm OL
NPD11210010 10.0mm 13mm 12mm 70mm 50mm
NPD11212010 12.0mm 13mm 12mm 70mm 50mm
NPD11616010 16.0mm 13mm 16mm 70mm 50mm
C1
ØD
Ød = shank diameter
ØD = cut diameter
OL = overall length
C1 = cut length
C2 = shank length
