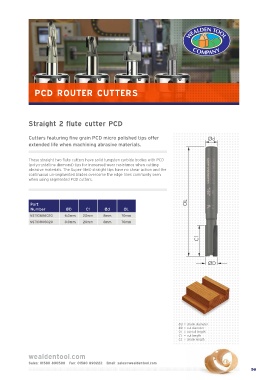

Page 59 - CNC catalogue 2021

PCD ROUTER CUTTERS

Straight 2 flute cutter PCD

Cutters featuring fine grain PCD micro polished tips offer
extended life when machining abrasive materials.

These straight two flute cutters have solid tungsten carbide bodies with PCD
(polycrystalline diamond) tips for increased wear resistance when cutting
abrasive materials. The Super-life© straight tips have no shear action and the
continuous un-segmented blades overcome the edge lines commonly seen
when using segmented PCD cutters.

Part
Number ØD C1 Ød OL
NST10606020 6.0mm 20mm 8mm 70mm
NST10808020 8.0mm 20mm 8mm 70mm

Ød = shank diameter
ØD = cut diameter
OL = overall length
C1 = cut length
C2 = shank length
