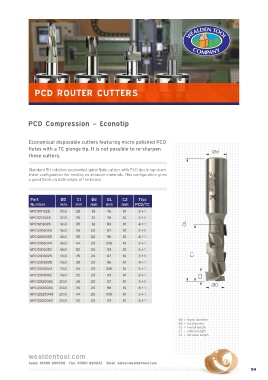

Page 57 - CNC catalogue 2021

PCD ROUTER CUTTERS

PCD Compression – Econotip

Economical disposable cutters featuring micro polished PCD
flutes with a TC plunge tip. It is not possible to re-sharpen
Ød
these cutters.

Standard RH rotation segmented spiral flute cutters with PCD tips in up-down
shear configuration for nesting on abrasive materials. This configuration gives
a good finish on both edges of the board.

Part ØD C1 Ød OL C2 Tips
Number mm mm mm mm mm PCD/TC
NPC11011025 10.0 25 10 76 10 2 + 1
NPC11212025 12.0 25 12 76 10 3 + 1
NPC11212035 12.0 35 12 83 10 4 + 1 OL
NPC12016025 16.0 25 20 87 10 3 + 1
NPC12016035 16.0 35 20 96 10 4 + 1
NPC12016044 16.0 44 20 105 10 5 + 1
NPC12016052 16.0 52 20 113 10 6 + 1
NPC12018025 18.0 25 20 87 10 3 + 1 C1
NPC12018035 18.0 35 20 96 10 4 + 1
NPC12018044 18.0 44 20 105 10 5 + 1
NPC12018052 18.0 52 20 113 10 6 + 1 C2
NPC12020025 20.0 25 20 87 10 3 + 1
ØD
NPC12020035 20.0 35 20 96 10 4 + 1
NPC12020044 20.0 44 20 105 10 5 + 1
NPC12020052 20.0 52 20 113 10 6 + 1

Ød = shank diameter
ØD = cut diameter
OL = overall length
C1 = cutting length
C2 = up-shear length
