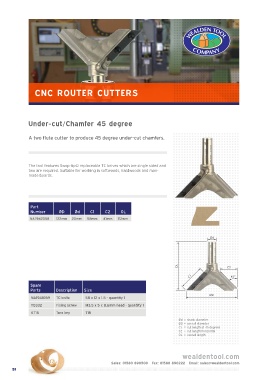

Page 54 - CNC catalogue 2021
P. 54
CNC ROUTER CUTTERS
Under-cut/Chamfer 45 degree
A two flute cutter to produce 45 degree under-cut chamfers.
The tool features Swop-tip© replaceable TC knives which are single sided and
two are required. Suitable for working in softwoods, hardwoods and man-
made boards.
Part
Number ØD Ød C1 C2 OL
NA1942058 122mm 20mm 58mm 41mm 112mm
Spare
Parts Description Size
NA1941059 TC knife 58 x 12 x 1.5 - quantity 1
TQ332 Fixing screw M3.5 x 5 x 8.6mm head - quantity 1
KT15 Torx key T15
Ød = shank diameter
ØD = overall diameter
C1 = cut length at 45 degrees
C2 = cut length horizontal
OL = overall length
