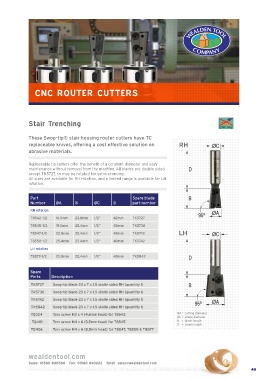

CNC ROUTER CUTTERS

Stair Trenching

These Swop-tip© stair housing router cutters have TC
replaceable knives, offering a cost effective solution on RH
abrasive materials.

Replaceable tip cutters offer the benefit of a constant diameter and easy
maintenance without removal from the machine. All blades are double sided
except TK5727, so may be rotated for extra economy.
All sizes are available for RH rotation, and a limited range is available for LH
rotation.

Part Spare blade
Number ØA B ØC D part number
RH rotation
T8542-1/2 16.0mm 23.0mm 1/2” 42mm TK5727
T8545-1/2 19.0mm 25.4mm 1/2” 40mm TK5730
T8547-1/2 22.0mm 25.4mm 1/2” 40mm TK5742 LH
T8550-1/2 25.4mm 25.4mm 1/2” 40mm TK5742
LH rotation
T8577-1/2 22.0mm 25.4mm 1/2” 40mm TK5842

Spare
Parts Description
TK5727 Swop-tip blade 23 x 7 x 1.5 sindle sided RH (quantity 1)
TK5730 Swop-tip blade 23 x 7 x 1.5 sindle sided RH (quantity 1)
TK5742 Swop-tip blade 23 x 7 x 1.5 sindle sided RH (quantity 1)
TK5842 Swop-tip blade 23 x 7 x 1.5 sindle sided RH (quantity 1)
TQ304 Torx screw M3 x 4 (4.6mm head) for T8542 ØA = cutting diameter
ØC = shank diameter
TQ401 Torx screw M4 x 6 (5.5mm head) for T8545 B = blade length
D = shank length
TQ406 Torx screw M4 x 6 (8.5mm head) for T8547, T8550 & T8577
