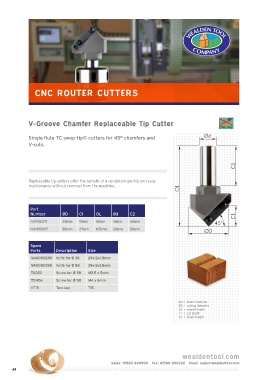

Page 44 - CNC catalogue 2021
P. 44
CNC ROUTER CUTTERS
V-Groove Chamfer Replaceable Tip Cutter
Single flute TC swop-tip© cutters for 45° chamfers and Ød
V-cuts.
C2
Replaceable tip cutters offer the benefit of a consistent profile and easy
maintenance without removal from the machine.
OL
Part
Number ØD C1 OL Ød C2
C1
NA1912019 38mm 19mm 81mm 16mm 50mm
45°
NA1912027 58mm 27mm 105mm 20mm 50mm
ØD
Spare
Parts Description Size
NA0050290 Knife for Ø 38 29x12x1.5mm
NA0050390 Knife for Ø 58 39x12x1.5mm
TQ352 Screw for Ø 38 M3.5 x 5mm
TQ406 Screw for Ø 58 M4 x 6mm
KT15 Torx key T15
Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = cut depth
C2 = shank length
