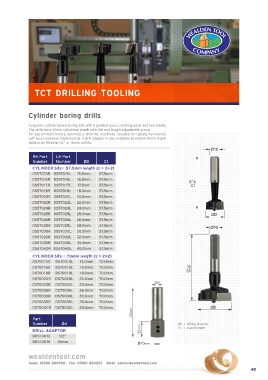

TCT DRILLING TOOLING

Cylinder boring drills

Tungsten carbide tipped boring bits with 2 pointed spurs, centring point and two blades.
The drills have 10mm cylindrical shank with flat and length adjustment screw.
For use on multi-borers, automatics and CNC machines. Suitable for cutting hard wood,
soft wood and man made boards. A drill adaptor is also available to enable 10mm shank
drills to be fitted in 1/2” or 16mm collets.
Ø10
RH Part LH Part
Number Number ØD C1
CYLINDER bits— 57.5mm length (z = 2+2)
DS57015R DS57015L 15.0mm 57.5mm
DS57016R DS57016L 16.0mm 57.5mm
57.5
DS57017R DS57017L 17.0mm 57.5mm C1
DS57018R DS57018L 18.0mm 57.5mm
DS57020R DS57020L 20.0mm 57.5mm
DS57022R DS57022L 22.0mm 57.5mm
DS57024R DS57024L 24.0mm 57.5mm
DS57025R DS57025L 25.0mm 57.5mm ØD
DS57026R DS57026L 26.0mm 57.5mm
DS57028R DS57028L 28.0mm 57.5mm
Ø10
DS57030R DS57030L 30.0mm 57.5mm
DS57032R DS57032L 32.0mm 57.5mm
DS57035R DS57035L 35.0mm 57.5mm
DS57040R DS57040L 40.0mm 57.5mm
CYLINDER bits — 70mm length (z = 2+2)
DS70015R DS70015L 15.0mm 70.0mm
DS70016R DS70016L 16.0mm 70.0mm 70
DS70018R DS70018L 18.0mm 70.0mm C1
DS70020R DS70020L 20.0mm 70.0mm
DS70025R DS70025L 25.0mm 70.0mm
DS70026R DS70026L 26.0mm 70.0mm
DS70030R DS70030L 30.0mm 70.0mm
DS70035R DS70035L 35.0mm 70.0mm
DS70040R DS70040L 40.0mm 70.0mm ØD

Part
Number Ød ØD = drilling diameter
C1 = overall length
DRILL ADAPTOR
DD510013 1/2”
DD510016 16mm
