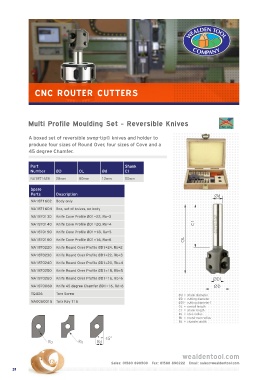

Page 34 - CNC catalogue 2021

CNC ROUTER CUTTERS

Multi Profile Moulding Set - Reversible Knives

A boxed set of reversible swop-tip© knives and holder to
produce four sizes of Round Over, four sizes of Cove and a
45 degree Chamfer.

Part Shank
Number ØD OL Ød C1
NA1871628 28mm 80mm 12mm 50mm

Spare
Parts Description
Ød
NA1871602 Body only
NA1871604 Box, set of knives, no body
NA1870130 Knife Cove Profile ØD1=22, Ra=3

NA1870140 Knife Cove Profile ØD1=20, Ra=4 C1
NA1870150 Knife Cove Profile ØD1=18, Ra=5
NA1870160 Knife Cove Profile ØD1=16, Ra=6 OL
NA1870220 Knife Round Over Profile ØD1=24, Rb=2
NA1870230 Knife Round Over Profile ØD1=22, Rb=3
NA1870240 Knife Round Over Profile ØD1=20, Rb=4
NA1870250 Knife Round Over Profile ØD1=18, Rb=5
NA1870260 Knife Round Over Profile ØD1=16, Rb=6 ØD1

NA1870060 Knife 45 degree Chamfer ØD1=16, Rd=6 ØD
TQ406 Torx Screw Ød = shank diameter
ØD = cutting diameter
NA0050015 Torx Key T15 ØD1 = cutting diameter 1
OL = overall length
C1 = shank length
Ra = cove radius
Rb = round over radius
Rd = chamfer width
