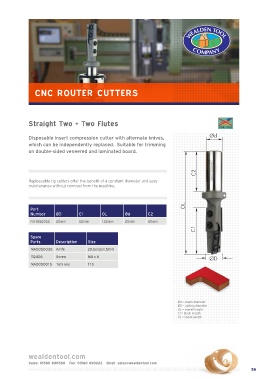

Page 29 - CNC catalogue 2021
P. 29
CNC ROUTER CUTTERS
Straight Two + Two Flutes
Disposable insert compression cutter with alternate knives, Ød
which can be independently replaced. Suitable for trimming
on double-sided veneered and laminated board.
C2
Replaceable tip cutters offer the benefit of a constant diameter and easy
maintenance without removal from the machine.
OL
Part
Number ØD C1 OL Ød C2
NA1852052 20mm 52mm 125mm 20mm 50mm
C1
Spare
Parts Description Size
NA0050030 Knife 29.5x12x1.5mm
TQ406 Screw M4 x 6
ØD
NA0050015 Torx key T15
Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
C2 = shank length
wealdentool.com
Sales: 01580 890500 Fax: 01580 890222 Email: sales@wealdentool.com
26
