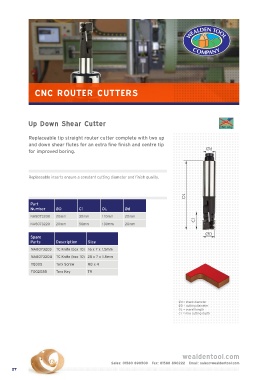

Page 30 - CNC catalogue 2021
P. 30
CNC ROUTER CUTTERS
Up Down Shear Cutter
Replaceable tip straight router cutter complete with two up
and down shear flutes for an extra fine finish and centre tip
for improved boring. Ød
Replaceable inserts ensure a constant cutting diameter and finish quality.
OL
Part
Number ØD C1 OL Ød
NA8073200 20mm 30mm 110mm 20mm
C1
NA8073220 20mm 50mm 130mm 20mm
ØD
Spare
Parts Description Size
NA8073203 TC Knife (box 10) 16 x 7 x 1.5mm
NA8073204 TC Knife (box 10) 28 x 7 x 1.5mm
TQ305 Torx Screw M3 x 4
F002085 Torx Key T9
Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = max cutting depth
