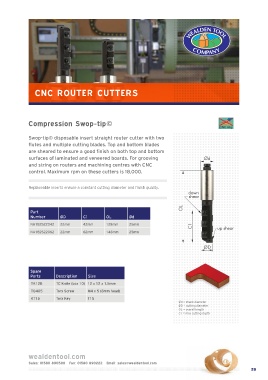

Page 31 - CNC catalogue 2021

CNC ROUTER CUTTERS

Compression Swop-tip©

Swop-tip© disposable insert straight router cutter with two
flutes and multiple cutting blades. Top and bottom blades
are sheared to ensure a good finish on both top and bottom
surfaces of laminated and veneered boards. For grooving
and sizing on routers and machining centres with CNC
control. Maximum rpm on these cutters is 18,000.

Replaceable inserts ensure a constant cutting diameter and finish quality.

Part
Number ØD C1 OL Ød

NA182522042 22mm 42mm 128mm 25mm
NA182522062 22mm 62mm 148mm 25mm

Spare
Parts Description Size
TK12B TC Knife (box 10) 12 x 12 x 1.5mm
TQ405 Torx Screw M4 x 5 (8mm head)
KT15 Torx Key T15
Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = max cutting depth
