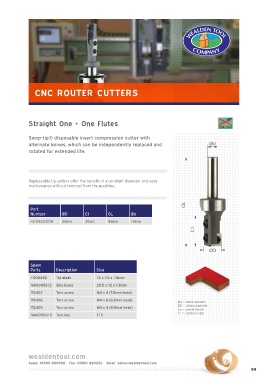

Page 27 - CNC catalogue 2021

CNC ROUTER CUTTERS

Straight One + One Flutes

Swop-tip© disposable insert compression cutter with
alternate knives, which can be independently replaced and
rotated for extended life.

Replaceable tip cutters offer the benefit of a constant diameter and easy
maintenance without removal from the machine.

Part
Number ØD C1 OL Ød
NA176203010 20mm 30mm 85mm 10mm

Spare
Parts Description Size
F000452 Tip blade 12 x 7.5 x 1.5mm
NA0005312 Side blade 29.5 x 12 x 1.5mm
TQ402 Torx screw M4 x 4 (7.5mm head)
TQ406 Torx screw M4 x 6 (8.5mm head) Ød = shank diameter
ØD = cutting diameter
TQ409 Torx screw M4 x 4 (8.5mm head)
OL = overall length
NA0050015 Torx key T15 C1 = cutting length
