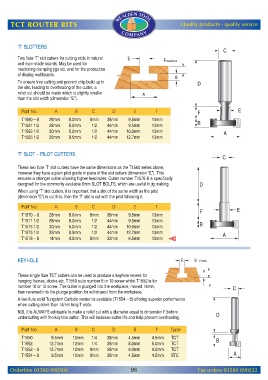

Page 98 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

‘T’ SLOTTERS

Two flute ‘T’ slot cutters for cutting slots in natural
and man-made boards. May be used for
machining clamping jigs etc. and for the production
of display wallboards.
To ensure free cutting and prevent chip build-up in
the slot, leading to overheating of the cutter, a
relief cut should be made which is slightly smaller
than the slot width (dimension “E”).

Part No. A B C D E F

T1560 – 8 28mm 8.0mm 8mm 38mm 9.5mm 13mm
T1561 1/2 28mm 8.0mm 1/2 44mm 9.5mm 13mm
T1563 1/2 30mm 5.0mm 1/2 44mm 10.0mm 13mm
T1565 1/2 35mm 9.5mm 1/2 44mm 12.7mm 13mm

‘T’ SLOT – PILOT CUTTERS

These two flute ‘T’ slot cutters have the same dimensions as the T1560 series above,
however they have a plain pilot guide in place of the slot cutters (dimension “E”). This
ensures a stronger cutter allowing higher feed rates. Cutter number T1578-8 is specifically
designed for the commonly available 6mm SLOT BOLTS, which are useful in jig making.
When using ‘T’ slot cutters, it is important that a slot of the same width as the pilot
(dimension “E”) is cut first, then the ‘T’ slot is cut with the pilot following it.

Part No. A B C D E F
T1570 – 8 28mm 8.0mm 8mm 38mm 9.5mm 13mm
T1571 1/2 28mm 8.0mm 1/2 44mm 9.5mm 13mm
T1573 1/2 30mm 5.0mm 1/2 44mm 10.0mm 13mm
T1575 1/2 35mm 9.5mm 1/2 44mm 12.7mm 13mm
T1578 – 8 14mm 4.0mm 8mm 32mm 6.5mm 10mm

KEYHOLE

These single flute TCT cutters can be used to produce a keyhole recess for
hanging frames, clocks etc. T1550 suits number 8 or 10 screw whilst T1552 is for
number 10 or 12 screw. The cutter is plunged into the workpiece, moved 14mm,
then reversed into the plunge position for withdrawal from the workpiece.
A two flute solid Tungstem Carbide version is available (T1554 – 8) offering superior performance
when cutting more than 14mm long T slots.
N.B. It is ALWAYS advisable to make a relief cut with a diameter equal to dimension F before
undercutting with the keyhole cutter. This will increase cutter life and help prevent overheating.

Part No. A B C D E F Type
T1550 9.5mm 10mm 1/4 38mm 4.5mm 4.5mm TCT
T1552 12.7mm 12mm 1/4 38mm 8.0mm 5.0mm TCT
T1552 – 8 12.7mm 12mm 8mm 38mm 8.0mm 4.0mm TCT
T1554 – 8 9.5mm 10mm 8mm 38mm 4.5mm 4.5mm STC

Orderline 01580 890500 96 Fax orders 01580 890222
