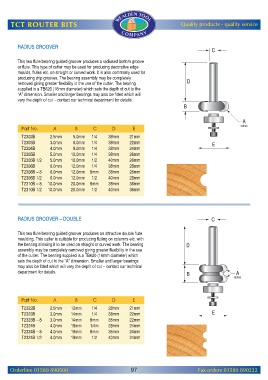

Page 99 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

RADIUS GROOVER

This two flute bearing guided groover produces a radiused bottom groove
or flute. This type of cutter may be used for producing decorative edge
moulds, flutes etc. on straight or curved work. It is also commonly used for
producing drip grooves. The bearing assembly may be completely
removed giving greater flexibility in the use of the cutter. The bearing
supplied is a TB620 (16mm diameter) which sets the depth of cut to the
“A” dimension. Smaller and larger bearings may also be fitted which will
vary the depth of cut – contact our technical department for details.

Part No. A B C D E
T2302B 2.5mm 5.0mm 1/4 38mm 21mm
T2303B 3.0mm 6.0mm 1/4 38mm 22mm
T2304B 4.0mm 8.0mm 1/4 38mm 24mm
T2305B 5.0mm 10.0mm 1/4 38mm 26mm
T2305B 1/2 5.0mm 10.0mm 1/2 40mm 26mm
T2306B 6.0mm 12.0mm 1/4 38mm 28mm
T2306B – 8 6.0mm 12.0mm 8mm 38mm 28mm
T2306B 1/2 6.0mm 12.0mm 1/2 40mm 28mm
T2310B – 8 10.0mm 20.0mm 8mm 38mm 36mm
T2310B 1/2 10.0mm 20.0mm 1/2 40mm 36mm

RADIUS GROOVER – DOUBLE

This two flute bearing guided groover produces an attractive double flute
moulding. This cutter is suitable for producing fluting on columns etc. with
the bearing allowing it to be used on straight or curved work. The bearing
assembly may be completely removed giving greater flexibility in the use
of the cutter. The bearing supplied is a TB620 (16mm diameter) which
sets the depth of cut to the “A” dimension. Smaller and larger bearings
may also be fitted which will vary the depth of cut – contact our technical
department for details.

Part No. A B C D E
T2322B 2.5mm 12mm 1/4 28mm 21mm
T2323B 3.0mm 14mm 1/4 38mm 22mm
T2323B – 8 3.0mm 14mm 8mm 35mm 22mm
T2324B 4.0mm 19mm 1/4m 28mm 24mm
T2324B – 8 4.0mm 19mm 8mm 35mm 24mm
T2324B 1/2 4.0mm 19mm 1/2 40mm 24mm
