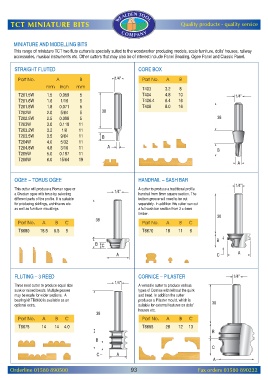

Page 95 - Router Catalogue 2021

WEALDEN TOOL
TCT MINIATURE BITS Quality products - quality service
COM PAN Y

MINIATURE AND MODELLING BITS
This range of miniature TCT two flute cutters is specially suited to the woodworker producing models, scale furniture, dolls’ houses, railway
accessories, musical instruments etc. Other cutters that may also be of interest include Panel Beading, Ogee Panel and Classic Panel.

STRAIGHT FLUTED CORE BOX

Part No. A B Part No. A B
mm inch mm T403 3.2 8
T201.5W 1.5 0.059 5 T404 4.8 10
T201.6W 1.6 1/16 5 T406.4 6.4 16
T201.8W 1.8 0.071 5 T408 8.0 16
T202W 2.0 5/64 5
T202.5W 2.5 0.098 5
T203W 3.0 0.118 11
T203.2W 3.2 1/8 11
T203.5W 3.5 9/64 11
T204W 4.0 5/32 11
T204.8W 4.8 3/16 11
T205W 5.0 0.197 11
T206W 6.0 15/64 19

OGEE – TORUS OGEE HANDRAIL – SASH BAR

This cutter will produce a Roman ogee or A cutter to produce a traditional profile
a Grecian ogee with torus by selecting handrail from 8mm square section. The
different parts of the profile. It is suitable bottom groove will need to be cut
for producing skirtings, architraves etc. separately. In addition this cutter can cut
as well as furniture mouldings. a full sash bar section from3x4mm
timber.
Part No. A B C Part No. A B C
T6680 18.5 8.5 5 T6670 18 11 6

FLUTING – 3 REED CORNICE – PILASTER

Three reed cutter to produce equal size A versatile cutter to produce various
sunk or raised beads. Multiple passes types of Cornice with/without the quirk
may be made for wider sections. A and bead. In addition the cutter
bearing kit TB6600 is available as an produces a Pilaster mould, which is
optional extra. suitable for external features on dolls’
houses etc.

Part No. A B C Part No. A B C
T6675 14 14 4.0 T6685 28 12 13

Orderline 01580 890500 93 Fax orders 01580 890222
