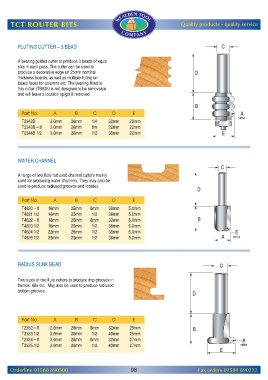

Page 100 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

FLUTING CUTTER – 3 BEAD

A bearing guided cutter to produce 3 beads of equal
size in each pass. The cutter can be used to
produce a decorative edge on 25mm nominal
thickness boards, as well as multiple fluting on
board faces for columns etc. The bearing fitted to
this cutter (TB625) is not designed to be removable
and will leave a location spigot if removed.

Part No. A B C D E
T2342B 3.0mm 26mm 1/4 32mm 22mm
T2343B – 8 3.0mm 26mm 8m 32mm 22mm
T2344B 1/2 3.0mm 26mm 1/2 38mm 22mm

WATER CHANNEL

A range of two flute radiused channel cutters mainly
used for producing water channels. They may also be
used to produce radiused grooves and rebates.

Part No. A B C D E
T4620 – 8 16mm 25mm 8mm 38mm 5.0mm
T4621 1/2 16mm 25mm 1/2 38mm 5.0mm
T4622 – 8 18mm 25mm 8mm 32mm 5.0mm
T4623 1/2 18mm 25mm 1/2 38mm 5.0mm
T4624 1/2 22mm 25mm 1/2 38mm 5.0mm
T4625 1/2 25mm 25mm 1/2 38mm 5.0mm

RADIUS SUNK BEAD

Two sizes of two flute cutters to produce drip grooves in
frames, sills etc. May also be used to produce radiused
bottom grooves.

Part No. A B C D E
T2332 – 8 2.0mm 28mm 8mm 32mm 25mm
T2333 1/2 2.0mm 28mm 1/2 40mm 25mm
T2334 – 8 3.0mm 28mm 8mm 32mm 27mm
T2335 1/2 3.0mm 28mm 1/2 40mm 27mm

Orderline 01580 890500 98 Fax orders 01580 890222
