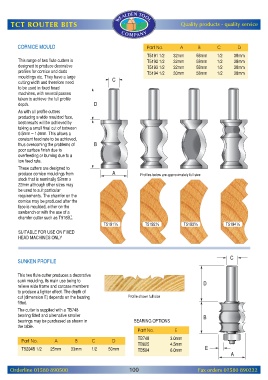

CORNICE MOULD Part No. A B C D

T5191 1/2 32mm 58mm 1/2 38mm
This range of two flute cutters is T5192 1/2 32mm 58mm 1/2 38mm
designed to produce decorative T5193 1/2 32mm 58mm 1/2 38mm
profiles for cornice and dado T5194 1/2 30mm 58mm 1/2 38mm
mouldings etc. They have a large
cutting width and therefore need
to be used in fixed head
machines, with several passes
taken to achieve the full profile
depth.
As with all profile cutters
producing a wide moulded face,
best results will be achieved by
taking a small final cut of between
0.5mm – 1.0mm. This allows a
constant feed rate to be achieved,
thus overcoming the problems of
poor surface finish due to
overfeeding or burning due to a
low feed rate.
These cutters are designed to
produce cornice mouldings from Profiles below are approximately full size
stock that is nominally 52mm x
22mm although other sizes may
be used to suit particular
requirements. The chamfer on the
cornice may be produced after the
face is moulded, either on the
sawbench or with the use of a
chamfer cutter such as T916B .

SUITABLE FOR USE ON FIXED
HEAD MACHINES ONLY

SUNKEN PROFILE

This two flute cutter produces a decorative
sunk moulding, its main use being to
relieve wide frame and carcase members
to produce a lighter effect. The depth of
cut (dimension E) depends on the bearing Profile shown full size
fitted.
The cutter is supplied with a TB748
bearing fitted and alternative smaller
bearings may be purchased as shown in BEARING OPTIONS
the table.
Part No. E
TB748 3.0mm
Part No. A B C D
TB625 4.5mm
T5204B 1/2 25mm 33mm 1/2 50mm TB504 6.0mm
