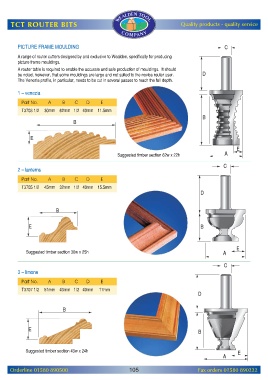

PICTURE FRAME MOULDING

A range of router cutters designed by and exclusive to Wealden, specifically for producing
picture frame mouldings.
A router table is required to enable the accurate and safe production of mouldings. It should
be noted, however, that some mouldings are large and not suited to the novice router user.
The Venezia profile, in particular, needs to be cut in several passes to reach the full depth.

1 – venezia

Part No. A B C D E
T3703 1/2 30mm 62mm 1/2 40mm 11.5mm

Suggested timber section 62w x 22h

2 – lanterns

Part No. A B C D E
T3705 1/2 45mm 32mm 1/2 40mm 15.5mm

Suggested timber section 30w x 25h

3 – limone

Part No. A B C D E
T3707 1/2 51mm 43mm 1/2 40mm 17mm

Suggested timber section 43w x 24h
