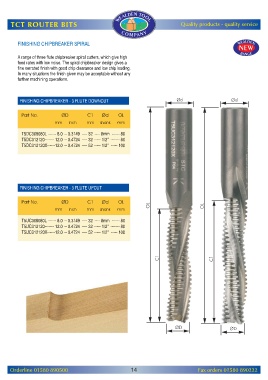

Page 16 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

FINISHING CHIPBREAKER SPIRAL

A range of three flute chipbreaker spiral cutters, which give high
feed rates with low noise. The spiral chipbreaker design gives a
fine serrated finish with good chip clearance and low chip loading.
In many situations the finish given may be acceptable without any
further machining operations.

FINISHING CHIPBREAKER - 3 FLUTE DOWNCUT Ød

Part No. ØD C1 Ød OL

mm inch mm shank mm
T5DC308080L ------ 8.0 -- 0.3149 ---- 32 ---- 8mm ------ 80
T5DC312120------- 12.0 -- 0.4724 ---- 32 ----- 1/2" ------- 80
T5DC312120X------12.0 -- 0.4724 ---- 52 ----- 1/2" ----- 100

FINISHING CHIPBREAKER - 3 FLUTE UPCUT

Part No. ØD C1 Ød OL
OL
mm inch mm shank mm

T5UC308080L ------ 8.0 -- 0.3149 ---- 32 ---- 8mm ------ 80
T5UC312120------- 12.0 -- 0.4724 ---- 32 ----- 1/2" ------- 80
T5UC312120X------12.0 -- 0.4724 ---- 52 ----- 1/2" ----- 100

C1

ØD
