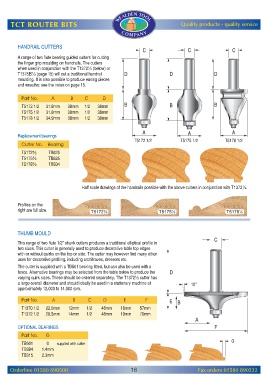

Page 18 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

HANDRAIL CUTTERS

A range of two flute bearing guided cutters for cutting
the finger grip moulding on handrails. The cutters
when used in conjunction with the T1372½ (below) or
T1375B½ (page 15) will cut a traditional handrail
moulding. It is also possible to produce easing pieces
and wreaths: see the notes on page 15.

Part No. A B C D
T5172 1/2 31.8mm 38mm 1/2 38mm
T5175 1/2 31.8mm 38mm 1/2 38mm
T5178 1/2 34.9mm 38mm 1/2 38mm

Replacement bearings
T5172 1/2 T5175 1/2 T5178 1/2
Cutter No. Bearing
T5172½ TB625
T5175½ TB625
T5178½ TB504

Half scale drawings of the handrails possible with the above cutters in conjunction with T1372½.

Profiles on the
right are full size.

THUMB MOULD

This range of two flute 1/2" shank cutters produces a traditional elliptical profile in
two sizes. This cutter is generally used to produce decorative table top edges
with or without quirks on the top or side. The cutter may however find many other
uses for decorative profiling, including architraves, dressers etc.
The cutter is supplied with a TB501 bearing fitted, but can also be used with a
fence. Alternative bearings may be selected from the table below to produce the
varying quirk sizes. These should be ordered separately. The T1372½ cutter has
a large overall diameter and should ideally be used in a stationary machine at
approximately 12,000 to 14,000 rpm.

Part No. A B C D E F
T1370 1/2 22.0mm 12mm 1/2 48mm 18mm 57mm
T1372 1/2 28.5mm 14mm 1/2 48mm 19mm 70mm

OPTIONAL BEARINGS
Part No. G

TB501 0 supplied with cutter
TB394 1.4mm
TB315 2.3mm
