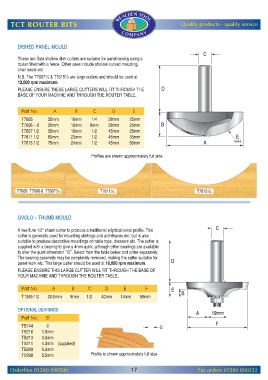

Page 19 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

DISHED PANEL MOULD

These two flute shallow dish cutters are suitable for panel raising using a
router fitted with a fence. Other uses include shallow curved moulding,
chair seats etc.
N.B. The T7607½ & T7615½ are large cutters and should be used at
12,000 rpm maximum.
PLEASE ENSURE THESE LARGE CUTTERS WILL FIT THROUGH THE
BASE OF YOUR MACHINE AND THROUGH THE ROUTER TABLE.

Part No. A B C D E
T7605 35mm 16mm 1/4 38mm 25mm
T7606 – 8 35mm 16mm 8mm 38mm 25mm
T7607 1/2 35mm 16mm 1/2 45mm 25mm
T7611 1/2 60mm 23mm 1/2 45mm 35mm
T7615 1/2 75mm 24mm 1/2 45mm 50mm

Profiles are shown approximately full size

OVOLO – THUMB MOULD

A two flute 1/2" shank cutter to produce a traditional elliptical ovolo profile. This
cutter is generally used for moulding skirtings and architraves etc. but is also
suitable to produce decorative mouldings on table tops, dressers etc. The cutter is
supplied with a bearing to give a 4mm quirk, although other bearings are available
to alter the quirk dimension “G”. Select from the table below and order separately.
The bearing assembly may be completely removed, making the cutter suitable for
panel work etc. This large cutter should be used at 16,000 rpm maximum.
PLEASE ENSURE THIS LARGE CUTTER WILL FIT THROUGH THE BASE OF
YOUR MACHINE AND THROUGH THE ROUTER TABLE.

Part No. A B C D E F

T1369 1/2 20.0mm 8mm 1/2 40mm 14mm 59mm

OPTIONAL BEARINGS

Part No. G
TB744 0
TB216 1.5mm
TB213 3.0mm
TB211 4.0mm (supplied)
TB209 5.0mm
TB208 5.5mm Profile is shown approximately full size
