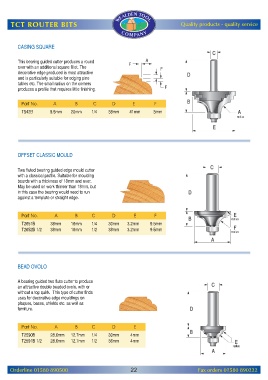

Page 24 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

CASING SQUARE

This bearing guided cutter produces a round
over with an additional square fillet. The
decorative edge produced is most attractive
and is particularly suitable for edging pine
tables etc. The small radius on the corners
produces a profile that requires little finishing.

Part No. A B C D E F
T542B 9.5mm 20mm 1/4 38mm 41mm 3mm

OFFSET CLASSIC MOULD

Two fluted bearing guided edge mould cutter
with a classical profile. Suitable for moulding
boards with a thickness of 18mm and over.
May be used on work thinner than 18mm, but
in this case the bearing would need to run
against a template or straight edge.

Part No. A B C D E F
T2651B 38mm 16mm 1/4 30mm 3.2mm 9.5mm
T2652B 1/2 38mm 16mm 1/2 38mm 3.2mm 9.5mm

BEAD OVOLO

A bearing guided two flute cutter to produce
an attractive double beaded ovolo, with or
without a top quirk. This type of cutter finds
uses for decorative edge mouldings on
plaques, bases, shields etc. as well as
furniture.

Part No. A B C D E
T2590B 28.6mm 12.7mm 1/4 30mm 4mm
T2591B 1/2 28.6mm 12.7mm 1/2 36mm 4mm

Orderline 01580 890500 22 Fax orders 01580 890222
