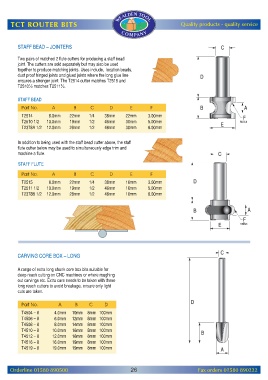

Page 28 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

STAFF BEAD – JOINTERS

Two pairs of matched 2 flute cutters for producing a staff bead
joint. The cutters are sold separately but may also be used
together to produce matching joints. Uses include, location beads,
dust proof hinged joints and glued joints where the long glue line
ensures a stronger joint. The T2514 cutter matches T2515 and
T2510½ matches T2511½.

STAFF BEAD
Part No. A B C D E F

T2514 6.0mm 22mm 1/4 38mm 22mm 3.00mm
T2510 1/2 10.0mm 19mm 1/2 46mm 30mm 5.00mm
T2378A 1/2 12.0mm 28mm 1/2 46mm 30mm 6.00mm

In addition to being used with the staff bead cutter above, the staff
flute cutter below may be used to simultaneously edge trim and
machine a flute.

STAFF FLUTE

Part No. A B C D E F
T2515 6.0mm 22mm 1/4 38mm 16mm 3.00mm
T2511 1/2 10.0mm 19mm 1/2 46mm 16mm 5.00mm
T2378B 1/2 12.0mm 28mm 1/2 46mm 16mm 6.00mm

CARVING CORE BOX – LONG

A range of extra long shank core box bits suitable for
deep reach cutting on CNC machines or where roughing
out carvings etc. Extra care needs to be taken with these
long reach cutters to avoid breakage, ensure only light
cuts are taken.

Part No. A B C D
T4504 – 8 4.0mm 10mm 8mm 100mm
T4506 – 8 6.0mm 12mm 8mm 100mm
T4508 – 8 8.0mm 14mm 8mm 100mm
T4510 – 8 10.0mm 16mm 8mm 100mm
T4512 – 8 12.0mm 16mm 8mm 100mm
T4516 – 8 16.0mm 19mm 8mm 100mm
T4519 – 8 19.0mm 19mm 8mm 100mm
