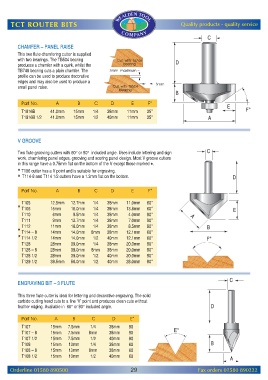

CHAMFER – PANEL RAISE
This two flute chamfering cutter is supplied
with two bearings. The TB504 bearing
produces a chamfer with a quirk, whilst the
TB748 bearing cuts a plain chamfer. The
profile can be used to produce decorative
edges and may also be used to produce a
small panel raise.

Part No. A B C D E F°
T1916B 41.0mm 15mm 1/4 38mm 11mm 35°
T1916B 1/2 41.0mm 15mm 1/2 40mm 11mm 35°

V GROOVE

Two flute grooving cutters with 60 or 90 included angle. Uses include lettering and sign
work, chamfering panel edges, grooving and scoring panel design. Most V groove cutters
in this range have a 0.75mm flat on the bottom of the V except those marked .
*
* T106 cutter has a V point and is suitable for engraving.
* T114-8 and T114 1/2 cutters have a 1.3mm flat on the bottom.

Part No. A B C D E F°

T105 12.5mm 12.7mm 1/4 38mm 11.0mm 60°
* T106 15mm 16.0mm 1/4 38mm 13.8mm 60°
T110 6mm 9.5mm 1/4 38mm 4.0mm 90°
T111 9mm 12.7mm 1/4 38mm 7.0mm 90°
T112 11mm 16.0mm 1/4 38mm 8.5mm 90°
* T114 – 8 14mm 14.0mm 8mm 38mm 12.1mm 60°
* T114 1/2 14mm 14.0mm 1/2 40mm 12.1mm 60°
T128 28mm 39.0mm 1/4 38mm 20.0mm 90°
T128 – 8 28mm 39.0mm 8mm 38mm 20.0mm 90°
T128 1/2 28mm 39.0mm 1/2 40mm 20.0mm 90°
T129 1/2 39.5mm 56.0mm 1/2 40mm 28.0mm 90°

ENGRAVING BIT – 3 FLUTE

This three flute cutter is ideal for lettering and decorative engraving. The solid
carbide cutting head cuts to a fine ‘V’ point and produces clean cuts without
feather edging. Available in 60 or 90 included angle.

Part No. A B C D E°
T107 15mm 7.5mm 1/4 38mm 90
T107 – 8 15mm 7.5mm 8mm 38mm 90
T107 1/2 15mm 7.5mm 1/2 40mm 90
T108 15mm 13mm 1/4 38mm 60
T108 – 8 15mm 13mm 8mm 38mm 60
T108 1/2 15mm 13mm 1/2 40mm 60
