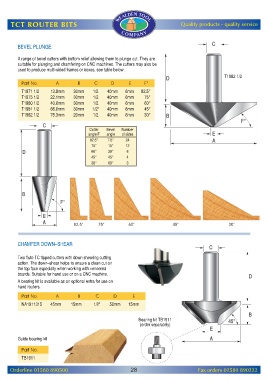

Page 30 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

BEVEL PLUNGE

A range of bevel cutters with bottom relief allowing them to plunge cut. They are
suitable for plunging and chamfering on CNC machines. The cutters may also be
used to produce multi-sided frames or boxes, see table below.
T1982 1/2
Part No. A B C D E F°

T1971 1/2 13.9mm 30mm 1/2 40mm 6mm 82.5°
T1975 1/2 22.1mm 30mm 1/2 40mm 6mm 75°
T1980 1/2 40.6mm 30mm 1/2 40mm 6mm 60°
T1981 1/2 66.0mm 30mm 1/2" 40mm 6mm 45°
T1982 1/2 75.3mm 20mm 1/2 40mm 6mm 30°

Cutter Bevel Number
angle F angle of sides
82.5° 7.5° 24
75° 15° 12
60° 30° 6
45° 45° 4
30° 60° 3

CHAMFER DOWN–SHEAR

Two flute TC tipped cutters with down shearing cutting
action. The down–shear helps to ensure a clean cut on
the top face especially when working with veneered
boards. Suitable for hand use or on a CNC machine.
A bearing kit is available as an optional extra for use on
hand routers.

Part No. A B C D E
NA1911315 45mm 15mm 1/2" 50mm 15mm

Bearing kit TB1911
(order separately)

Guide bearing kit

Part No.

TB1911

Orderline 01580 890500 28 Fax orders 01580 890222
